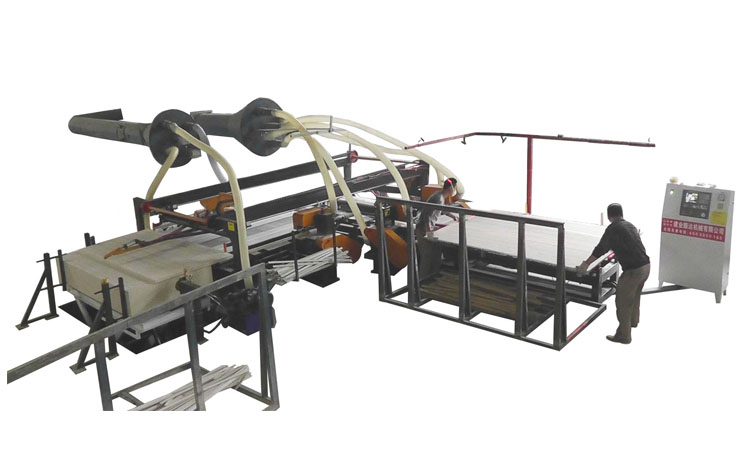

Glass magnesium board automatic sawing machine

Glass magnesium board automatic sawing machine

Glass magnesium board automatic sawing machine
Glass magnesium board automatic sawing machine
parameter
全自动锯边机的参数
型号JS36-48-2-B
配备系统PLC系统/伺服系统
加工厚度(mm)3-60
加工尺寸(mm)915-1220  1830-2440
锯片直径(mm)φ305
锯片转速(r/min)7000
送料速度(m/min)0-30
配备动力(KW)40
锯边电机(KW)7.5


Performance introduction

Jianye Shunda machinery automatic sawing machine performance:


1: Jianye Shunda Machinery uses servo control system (new control system brain)


2: Use a servo motor (the power output is stable, the sawing effect is good, and it is incomparable with ordinary frequency conversion motors)


3: High-precision positioning (the inertia caused by the rapid movement of the sawing edge table, the position deviation will not exceed 0.5 mm, which is several times the accuracy of the PLC system)


4: Without using any proximity switch, the sensor automatically memorizes the position of the saw edge, no maintenance is required, and the maintenance cost is reduced (the proximity PLC sensor is required for the stepping PLC system, and it will often fail and break down, resulting in sawing waste plates)


5: The system signal transmission uses optical transmission (no more control lines will appear, reducing the frequency of failure)


6: With memory function, it will not waste 1 plate under normal air pressure (like the human brain, it remembers the position of the plate, and it will not lose data even if the power is suddenly turned off)


7: Cast base (can reduce the vibration when sawing and improve the smoothness of sawing)


8: The racks are all welded with 5MM thick rectangular tubes and are processed by gantry planing (to ensure the accuracy of the sawing machine)


9: Use 8 saw blades to saw the edge, the speed is up to 7000 rpm, and the circulating oil (high speed is the key factor to ensure the good effect of the saw edge)


   This product is suitable for: "chipboard, density board, Malacca, plywood, blockboard, multi-layer board, fire board, melamine substrate, building template, plastic steel membrane board, bamboo board, flame retardant board, packaging board" and other plate saws side.
